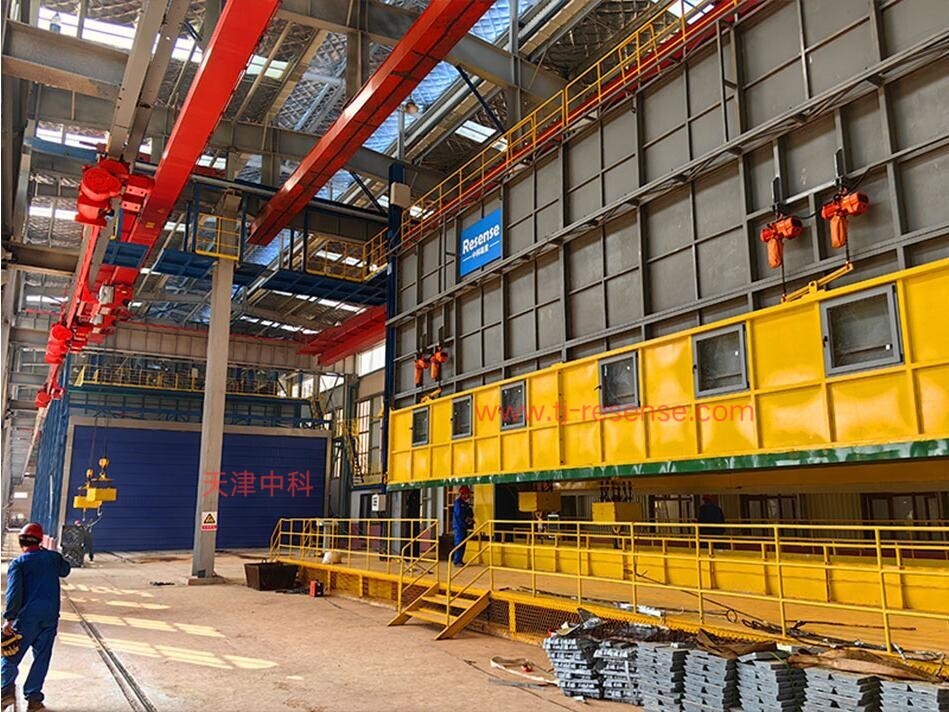

Product Overview

The Moving Rail (Transfer Rail) Type Layout Batch Hot Dip Galvanizing (HDG) Line is engineered for large-scale facilities requiring extreme process flexibility and maximum throughput. Unlike standard linear or circular lines where racks follow a strict single path, the Moving Rail system uses automated cross-transfer shuttle cars to switch lifting racks between parallel overhead tracks. This design effectively addresses the typical process time imbalance—where chemical pre-treatment takes hours but hot-dip dipping takes minutes—allowing the zinc kettle to maintain non-stop, high-frequency operations.

Key Technical Advantages

• Flexible Routing & Non-Stop Galvanizing: Racks can bypass delayed stations (e.g., heavily rusted parts requiring longer pickling times), ensuring a continuous supply of dried workpieces to the zinc kettle to maximize daily tonnage.

• High Precision Automated Alignment: Equipped with laser-guided or encoder-controlled shuttle cars, achieving millimeter-level track alignment for smooth, safe, and high-speed rack transferring.

• Scalable & Modular Layout: The parallel tank design allows factories to easily add extra acid pickling tanks or storage tracks in the future without altering the main galvanizing structure.

• Optimized Workspace Utilization: Perfect for wide, short-length (rectangular) workshop layouts, making the most of the factory width while keeping material movement highly organized.




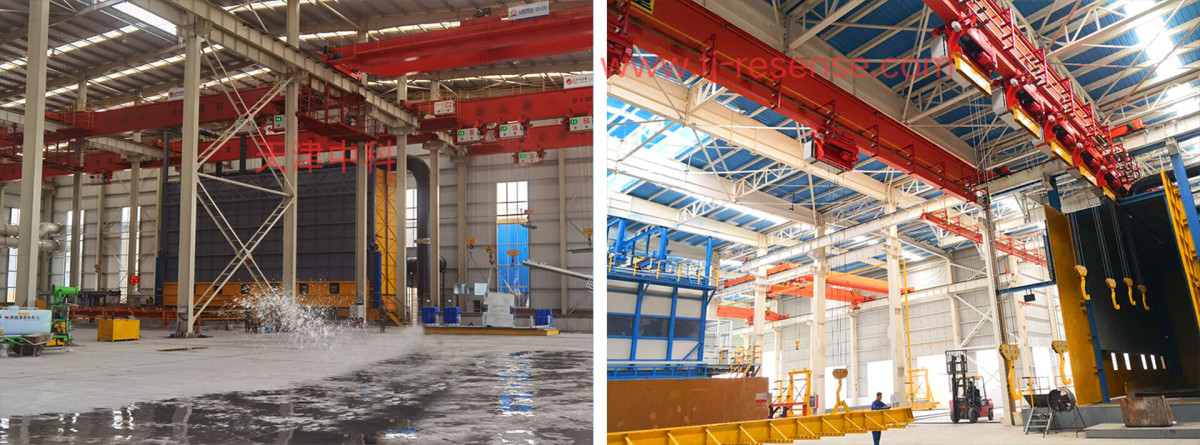

Process Flow (Parallel & Shuttle)

The system breaks the rigid sequential chain, creating a dynamic, parallel process network:

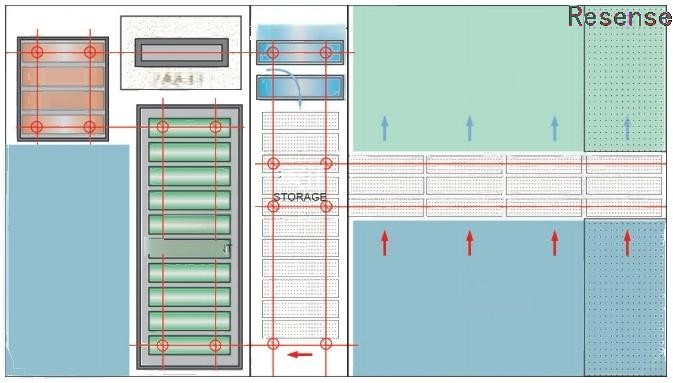

Loading Zone → Parallel Pre-treatment Lines (Multi-track Pickling & Rinsing) → Moving Rail Shuttle Car (Smart Sorting & Cross-Over) → Drying Room → High-Speed HDG dipping → Cooling & Passivation → Unloading & Packing

Technical Specifications

Intelligence & Lean Production

• Smart Scheduling (MES/PLC Integration): The automated control system automatically calculates the process time for each rack. It commands the shuttle cars to prioritize and transport the ready racks, eliminating human error and logistics bottlenecks.

• Enhanced Safety & Anti-Sway Control: High-end variable frequency drives (VFD) and anti-sway software ensure that when the moving rail transitions at high speeds, the heavily loaded racks remain perfectly stable without swinging.

Why Invest in Our Moving Rail Solution?

When standard layouts limit your factory's potential, our Moving Rail turnkey solution offers the ultimate industrial agility. We provide comprehensive layout engineering, heavy-duty automated machinery, and proprietary scheduling software. It is a future-proof investment that guarantees maximum zinc kettle uptime, supreme operator safety, and unmatched operational flexibility.
