Product Description
Product Overview
The "I" Type Layout Batch Hot Dip Galvanizing (HDG) Line is a premium, linear engineering solution designed for modern steel structure and hardware galvanizing. Featuring a single-axis, straight-line configuration, this line optimizes the entire process from pre-treatment to final post-treatment. It is the ultimate choice for enterprises seeking high throughput, maximum land utilization, and low operational costs in narrow or space-constrained workshops.
Key Technical Advantages
Footprint & Cost Optimization: The straight-line design requires minimal workshop width, significantly reducing land acquisition and factory construction costs.
Streamlined Logistics (Zero Cross-Interference): Materials enter from one end and exit from the other. This unidirectional flow completely eliminates backtracking and crane bottlenecking, boosting safety and efficiency.
Superior Thermal Efficiency: Fully integrated drying ovens utilize waste heat from the galvanizing furnace, drastically lowering energy consumption.
Robust Heavy-Duty Design: Tailored for rack-type batch operations, the line handles diverse workpieces (from small fasteners to heavy structural beams) with ease.
Process Flow

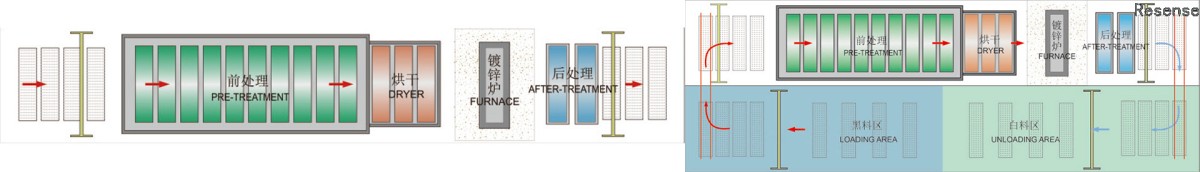

Our "I" type layout ensures each stage of the batch HDG process is seamlessly linked along a linear path:
Loading → Degreasing → Water Rinsing → Acid Pickling (Multiple Tanks) → Flushing → Fluxing → Drying (Waste Heat Utilization) → Hot Dip Galvanizing (Zinc Kettle) → Water/Quench Cooling → Passivation → Unloading & Inspection
Technical Specifications
Eco-Friendly & Smart Automation
Enclosed Environmental Enclosure: The linear structure perfectly accommodates a fully enclosed acid mist extraction encapsulation and a zinc fume white-smoke enclosure, ensuring 99% emission capture to meet strict environmental standards.
Automated Crane System: Equipped with intelligent PLC-controlled linear travel cranes, enabling automated dipping, precise lifting angles, and optimal zinc drainage to minimize zinc consumption.
Why Choose Us?
With decades of expertise in hot dip galvanizing plant engineering, we provide a turnkey solution including factory layout design, equipment manufacturing, installation, and commissioning. Our "I" type layout is trusted by global manufacturers for its reliability, safety, and rapid ROI (Return on Investment).
