Circular-galvanizing line
Client Overview: 1. Tianjin Youfa Steel Pipe Group Co., Ltd.
Corporate Profile: Headquartered in Tianjin, China, Tianjin Youfa Steel Pipe Group Co., Ltd. is a premier manufacturing group listed on the Main Board of the Shanghai Stock Exchange (SSE: 601686). The group is an industry-leading enterprise specializing in welded steel pipes, hot-dip galvanized steel pipes, and modern infrastructure components.
Industrial Scale & Footprint: Operating thirteen production bases nationwide, the group maintains a comprehensive industrial layout with its production and sales volumes consistently ranking at the top of the domestic market. Its global export network spans more than 100 countries and regions.
Core Portfolio: Youfa’s integrated capabilities encompass R&D, manufacturing, and distribution. Its main product lines feature hot-dip galvanized steel pipes, longitudinal welded pipes, steel-plastic composite pipes, photovoltaic (PV) supports, and heavy-duty scaffolding systems.
Technical Qualifications: Equipped with national-level R&D laboratories and multiple professional qualifications, Youfa has been recognized as a "China Top 500 Enterprise," a "National Manufacturing Single Champion," and a "National Green Factory." The group serves as a trusted brand for global infrastructure, steel structures, and large-scale galvanized product procurement.
Based on the project technical specifications provided, here is the structured data presented in a clean, professional, and objective format suitable for your Case Studies / Project Portfolio section:
Project Specifications & Technical Parameters
Year of Construction: 2016
Galvanizing Bath Size (L x W x H): 12.5 × 2.0 × 3.0 m
Overall System Dimensions: 14.0 × 2.2 × 3.3 m
Production Efficiency: 8 Dips / Hour
System Capacity (Load): 2 × 5 t
Pickling Electric Hoists: 4 units
Galvanizing Electric Hoists: 8 units
Material Handling & Process Flow

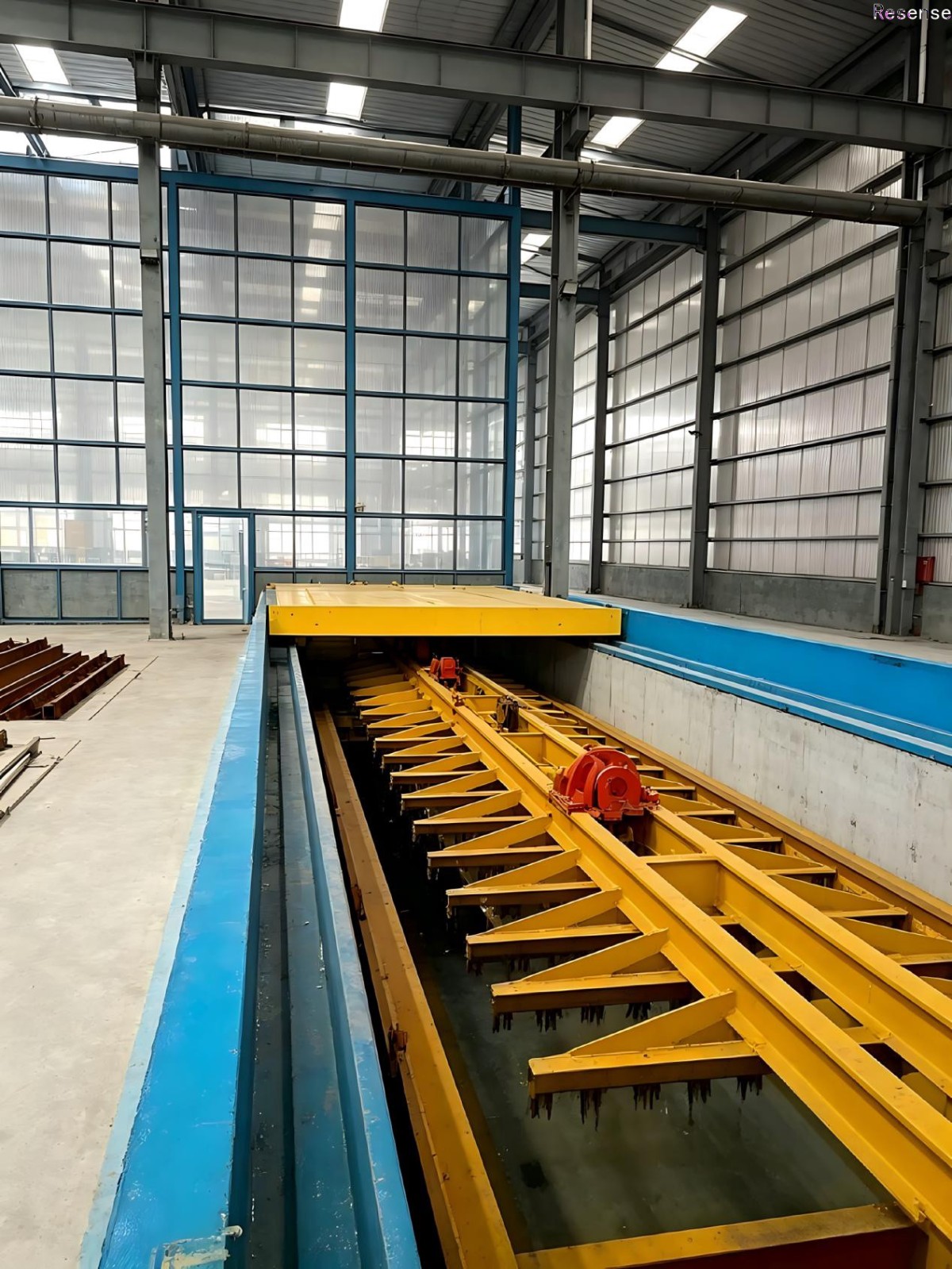

Pre-treatment Feeding: Material is fed from the side using a specialized trolley operating within a dedicated floor pit.
Pre-treatment Discharge: Material is discharged from the end of the line via an integrated chain transfer mechanism installed inside the floor pit.
