CASE STUDY
Strategic 4-Line Partnership: Building a Green, High-Efficiency Fully Automatic Loop Galvanizing Plant for an Industry Leader
1. Client Profile & Project Background

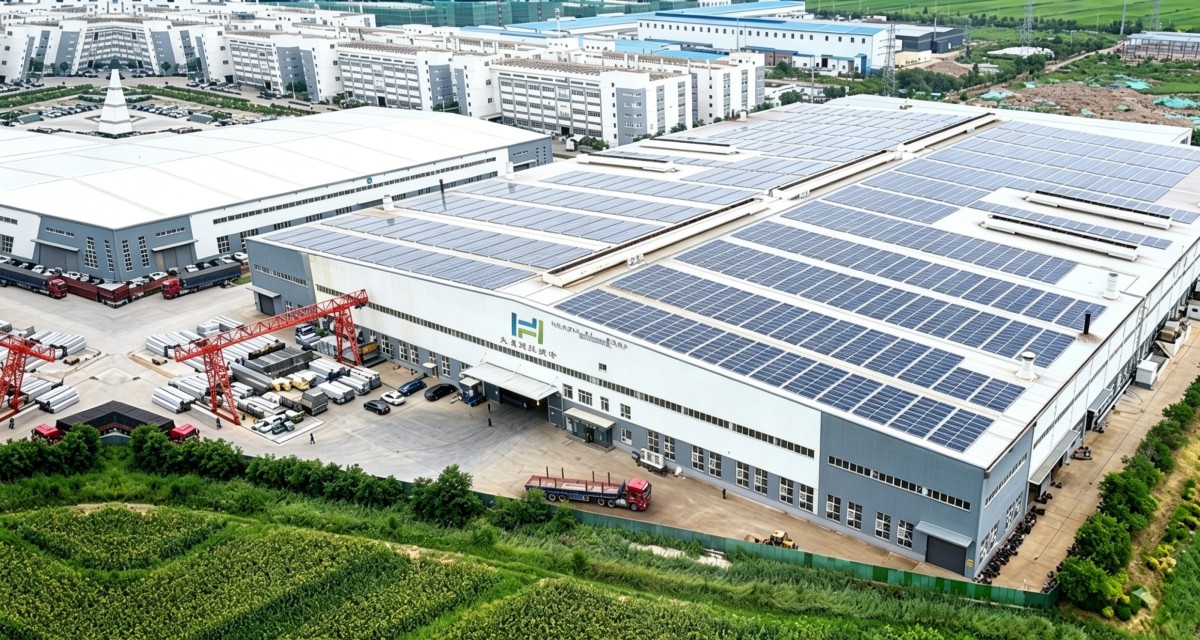

Tianjin Hongyue Environmental Technology Co., Ltd. is a premier, large-scale hot-dip galvanizing manufacturer located in Tianjin, China—a core global industrial hub for metal surface treatment. Recognized as a Key Municipal Construction Project with a total investment of 200 million RMB, the company stands as an industry benchmark for intelligent, large-scale, and eco-friendly manufacturing.
Today, Tianjin Hongyue operates 4 fully automatic intelligent hot-dip galvanizing production lines, all engineered, manufactured, and delivered through a deep strategic partnership with our team.Launched as a key industrial construction project in August 2022.
To fulfill massive global infrastructure contracts and secure bulk orders, Tianjin Hongyue required their latest Phase IV expansion line to leverage a fully automated closed-loop monorail system. This layout balances heavy-duty payload capacities with an ultra-high-frequency, non-stop production rhythm. Based on the exceptional reliability and zero-breakdown track record of our previous three lines, Tianjin Hongyue chose us for the fourth consecutive time to build their new manufacturing flagship.
2. Phase IV Technical Specifications
3. Core Advantages & Design Highlights
High Automation & Closed-Loop Logistics Optimization

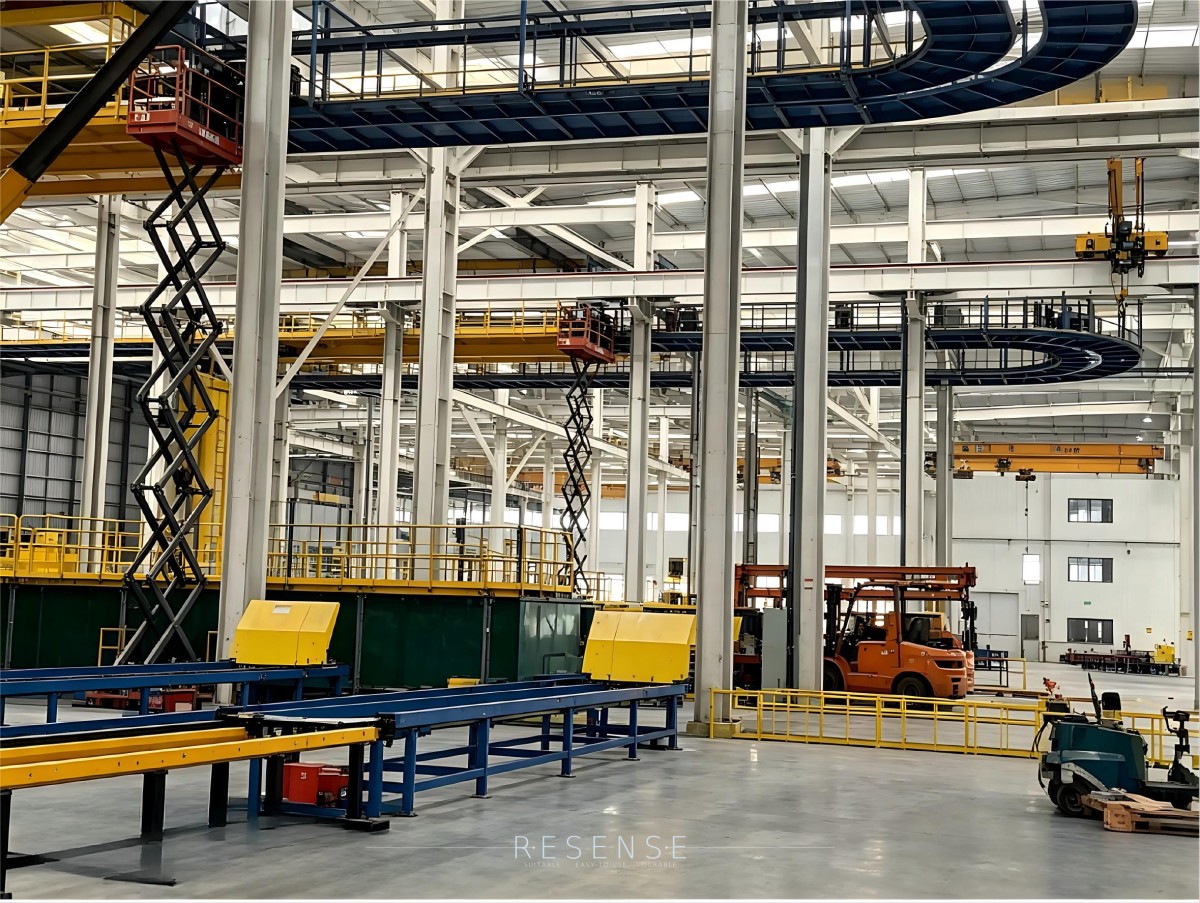

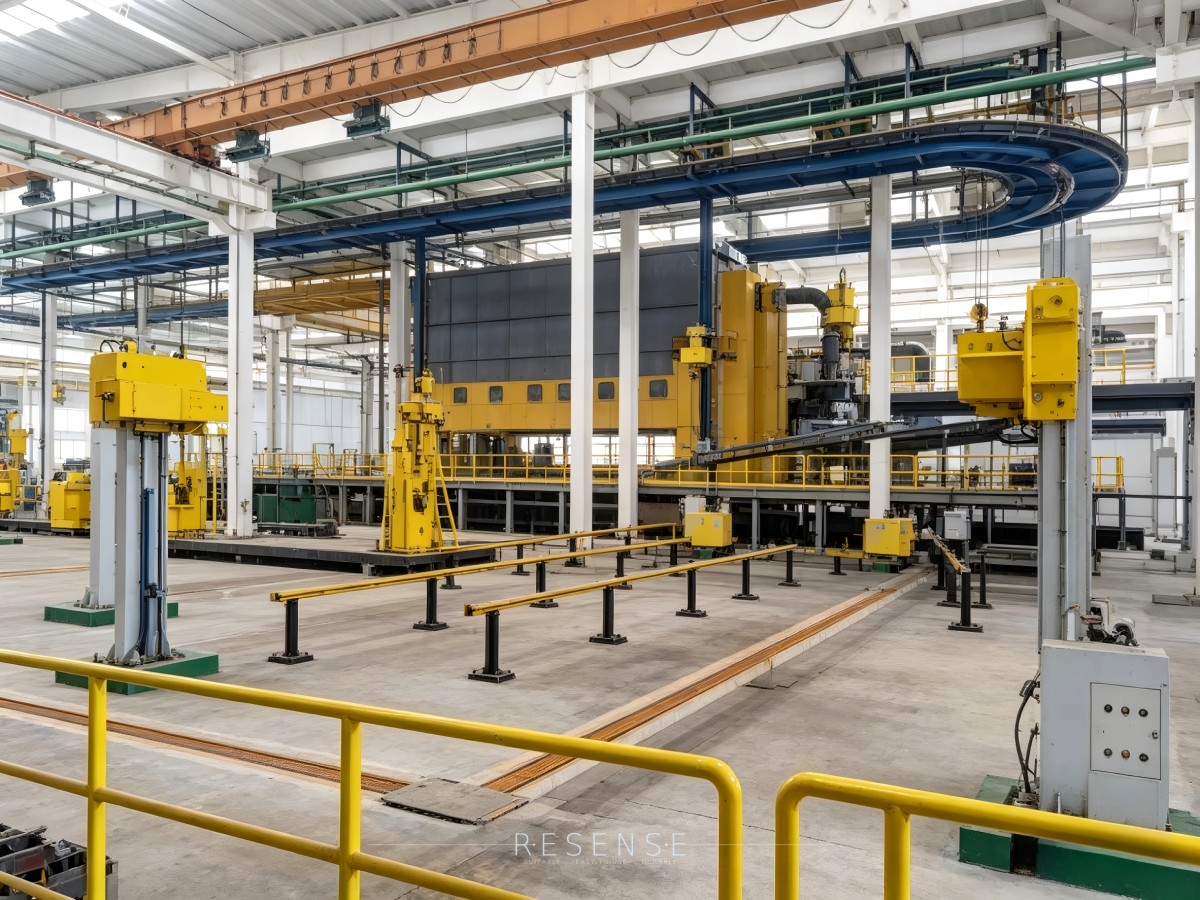

The defining feature of the Phase IV line is its fully integrated closed-loop automation matrix. Instead of traditional hoists moving back and forth on a single rail (causing bottlenecks), the 14 specialized hoists move continuously on a dedicated loop track. Controlled by intelligent dispatching software, the system precisely schedules dipping times, extraction speeds, and pathing. This guarantees an incredibly stable zinc coating quality and uniform corrosion resistance while completely eliminating transit wait times.
Strict Environmental Compliance via Sealed Negative-Pressure Loop

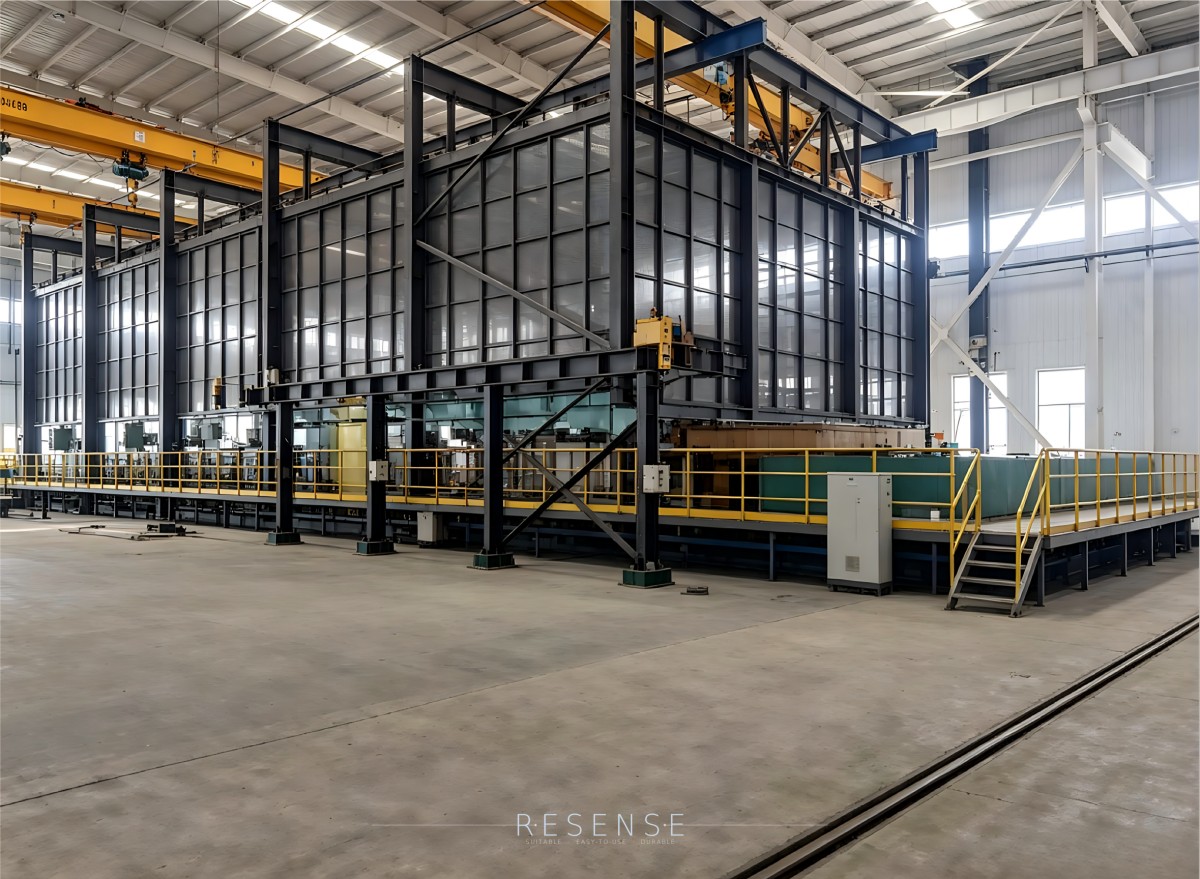

The entire loop line adopts an advanced, fully enclosed, suspended, negative-pressure design for both the pickling and dipping workshops. Because the loop system keeps the material moving smoothly through sealed zones, it realizes full visual management while completely trapping chemical leakage, acid mist, or zinc fumes. The entire facility fully complies with stringent regional and international environmental protection standards, achieving a clean and safe zero-emission working environment.
Massive Tonnage & Non-Stop Loop Reliability for Global Demands
Backed by a total annual production capacity of 500,000 tons and an annual output value exceeding 700 million RMB, Tianjin Hongyue demands world-class equipment stability. The heavy-duty 2 × 5t dual-hoist system integrated into the loop configuration ensures that the plant can process oversized, heavy infrastructure components without unexpected downtime. Our proven track record of stable loop operations and zero major breakdowns gives the client the confidence to guarantee on-time delivery for massive global projects.
Case Conclusion
"Four consecutive production lines are the ultimate testimonial to mutual trust and engineering excellence."
From the initial blueprint to the successful commissioning of the Phase IV intelligent loop line, our technological expertise has seamlessly integrated with Tianjin Hongyue's industry-leading scale. Together, we have built a world-class, green, and high-velocity loop galvanizing showcase that is fully prepared to serve premium infrastructure projects worldwide.
